Reliable Freshwater from Seawater and Brackish Sources
Water desalination using Reverse Osmosis (RO) is a proven,
efficient solution for producing clean, potable water from saline sources such as seawater or
brackish groundwater.
> HDCOP View
At HDCOP for Engineering, we specialize in the design, supply, installation, and commissioning of
complete RO desalination systems for municipalities, industries, and private facilities.
Our plants are engineered for high performance, energy efficiency, and long-term
durability—ensuring consistent water production even under challenging operating conditions.
• Typical RO Desalination Process Includes:
1. Intake System
- Draws seawater or brackish water from wells, open intakes, or surface sources.
2. Pre-Treatment
- Filtration Units: Multimedia or cartridge filters remove suspended solids.
- Chemical Dosing: Prevents scaling, fouling, and biological growth.

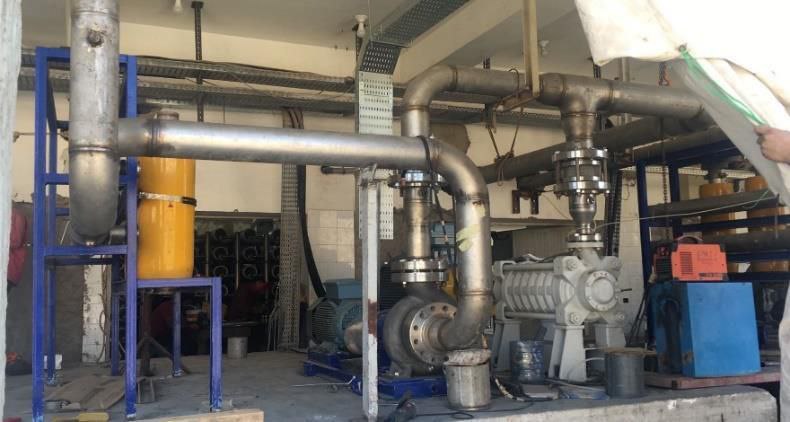

3.High-Pressure Pumping
- Increases pressure to push water through the RO membranes (typically 55–70 bar for
seawater).

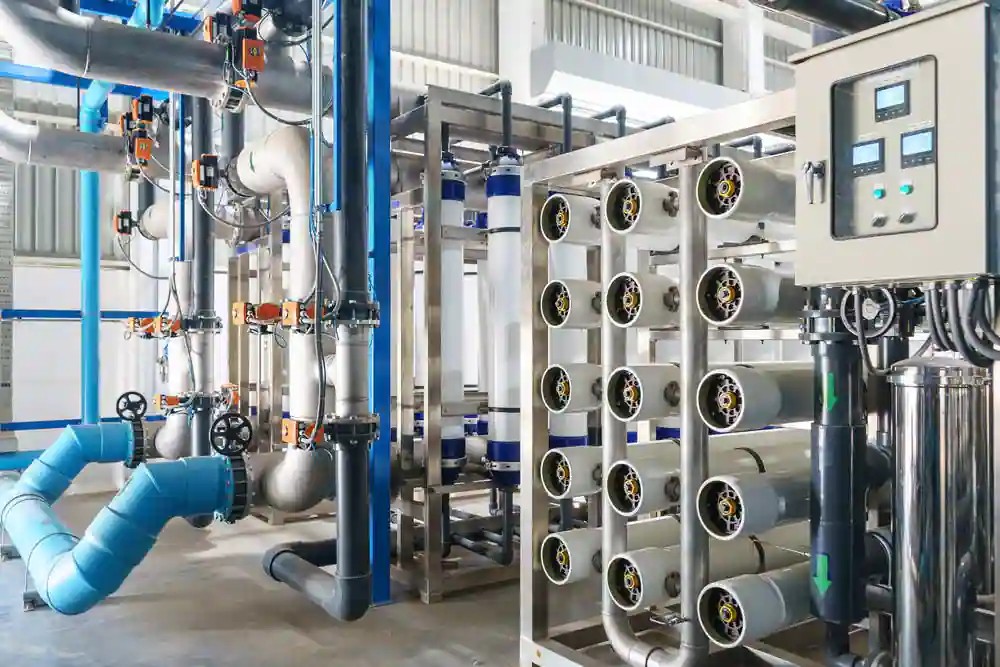

4. RO Membrane System
- Semi-permeable membranes separate salts, minerals, and contaminants from clean water.
5. Post-Treatment
- pH Adjustment & Remineralization: Improves water stability and taste.
- Disinfection: Ensures the water is safe for human use.
6. Brine Disposal
- Safe discharge or reuse of concentrated reject water, designed per
environmental standards.
>Applications of RO Desalination Plants:
- Coastal cities and resorts
- Industrial facilities requiring process water
- Island and remote communities
- Emergency mobile desalination units
- Agricultural and irrigation support

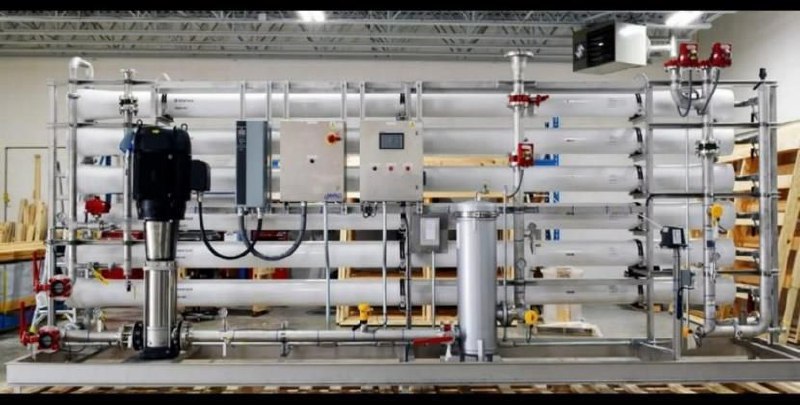

•HDCOP’s RO Plant Capabilities:
- Modular and containerized systems
- Fully automated operation with SCADA integration
- Energy recovery systems for efficiency
- Plants ranging from 50 m³/day to 10,000+ m³/day

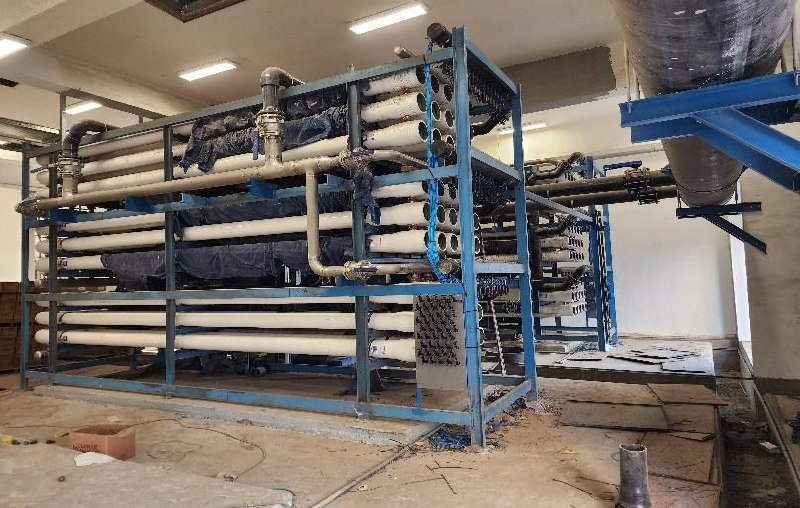

RO Plant Experience
Ras Sedr Sea Water 500 M3/D|||||||||||||||||||||Sharm Elshikh South Sina 12,000m3/D
Steel Suze RO with UF 10,000 M3/Day
